GPR

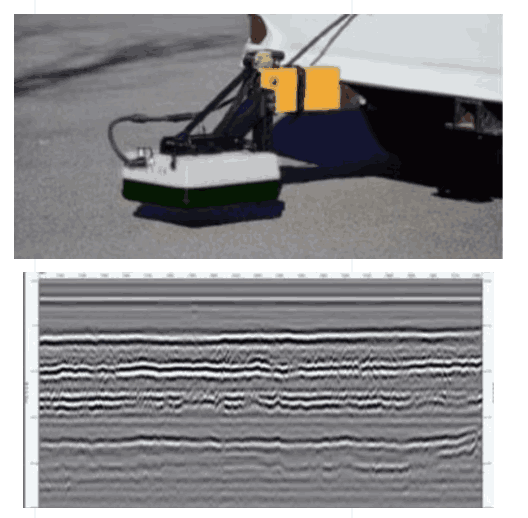

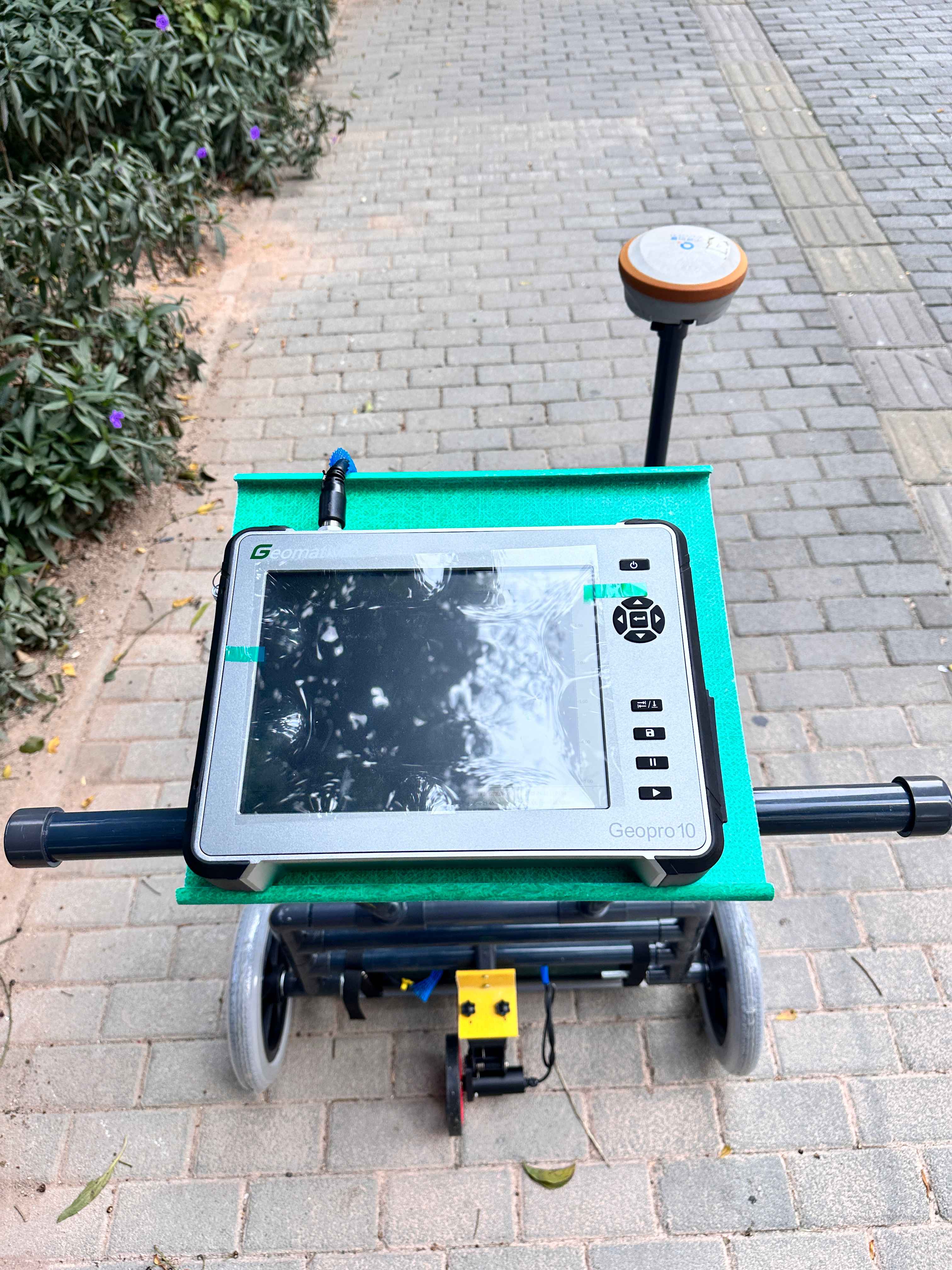

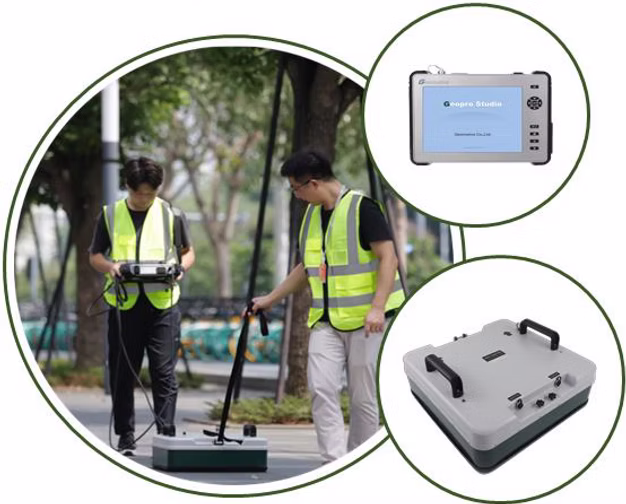

The Geopro 10 GPR mainframe is a portable, intelligent, high-performance, fully digital ground penetrating radar (GPR) system. It is compatible with the full range of Geopro T-series antennas and supports integration with most GPS devices. Built on a stable and reliable Windows-based platform, the system features a user-friendly Chinese-language interface tailored to the operational preferences of field technicians. Key advantages include its lightweight design, ease of operation, superior data quality, and high acquisition efficiency. The Geopro 10 GPR is widely utilized in various fields, including tunnel engineering, road and bridge construction, water conservancy projects, civil engineering, military applications, and archaeological investigations.
GPR SYSTEM
Geopro T2500 ground coupling antenna
| Volume | 250mm×170mm×150mm | Weight | 1.3kg |
| Center frequency | 2500MHz | The max launch frequency | 400kHz |
| Depth range | 0.1~0.3m | Coupling method | Ground coupling |
| Application areas | Building structure detection, road surface layer detection and bridge engineering, etc. | ||
Geopro T1600 ground coupling antenna
| Volume | 250mm×170mm×150mm | Weight | 1.3kg |
| Center frequency | 1600MHz | The max launch frequency | 400kHz |
| Depth range | 0.2~0.5m | Coupling method | Ground coupling |
| Application areas | Building structure detection, road surface layer detection and bridge engineering, etc. | ||
Geopro T900 ground coupling antenna
| Volume | 316mm×216mm×170mm | Weight | 2.3kg |
| Center frequency | 900MHz | The max launch frequency | 400kHz |
| Depth range | 0.5~1.5m | Coupling method | Ground coupling |
| Application areas | Tunnel lining, laying quality inspection, roadbed fail and harm inspection, building structure detection, etc. | ||
Geopro T400 ground coupling antenna
| Volume | 316mm×316mm×230mm | Weight | 3.6kg |
| Center frequency | 400MHz | The max launch frequency | 400kHz |
| Depth range | 1~4m | Coupling method | Ground coupling |
| Application areas | Tunnel lining, laying quality inspection, roadbed fail and harm inspection, city pipeline detection, water source and hydroelectricity engineering, etc. | ||
Geopro T200 ground coupling antenna
| Volume | 500mm×500mm×230mm | Weight | 6.4kg |
| Center frequency | 200MHz | The max launch frequency | 400kHz |
| Depth range | 1~6m | Coupling method | Ground coupling |
| Application areas | Tunnel lining, laying quality inspection, inverted arch quality inspection, city pipeline detection, water source and hydroelectricity engineering, roadbed fail and harm inspection, building structure detection, ground survey etc. | ||
Geopro T100 ground coupling antenna
| Volume | 980mm×560mm×320mm | Weight | 13.6kg |
| Center frequency | 100MHz | The max launch frequency | 100kHz |
| Depth range | 1~30m | Coupling method | Ground coupling |
| Application areas | Tunnel geology outstrip early report, mineral survey, water source and hydroelectricity engineering, etc. | ||
Applications
- Civil engineering including subsurface utilities, assessment of pavement structure, void & cavity detection
- Geology survey including soil profiling, groundwater depth detection, locating sinkholes, fractures
- Military including subsurface surveillance and tunnel detection, minefield mapping
- Archaeology including mapping buried structures, tombs, walls, identifying excavation targets, soil disturbances
- Tunnel engineering including mapping of geological structures ahead of tunnel face, locating fractures & voids, monitoring tunnel lining thickness
- Road engineering including determination of voids, corrosion analysis
- Water conservancy engineering including leakage detection in dams & canals, subsurface layer analysis, assessment of moisture content
- Bridge engineering including determination of voids, corrosion analysis
